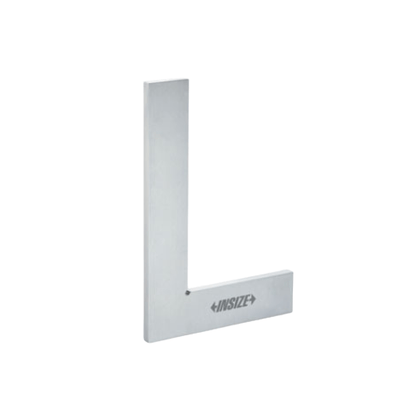

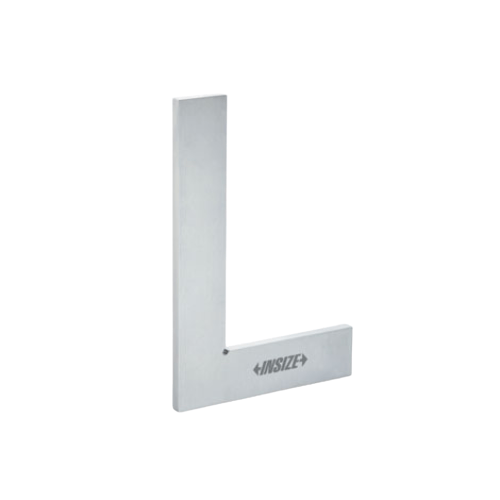

Insize Machinist Square (Economic Type)

The Insize 4796-300 Machinist Square is designed for checking squareness and 90° angle measurement in workshop applications. Made of carbon steel and complying with DIN875 Grade 2, this economic type square offers dependable accuracy for general use. Note: it is not hardened and has no anti-rust treatment.

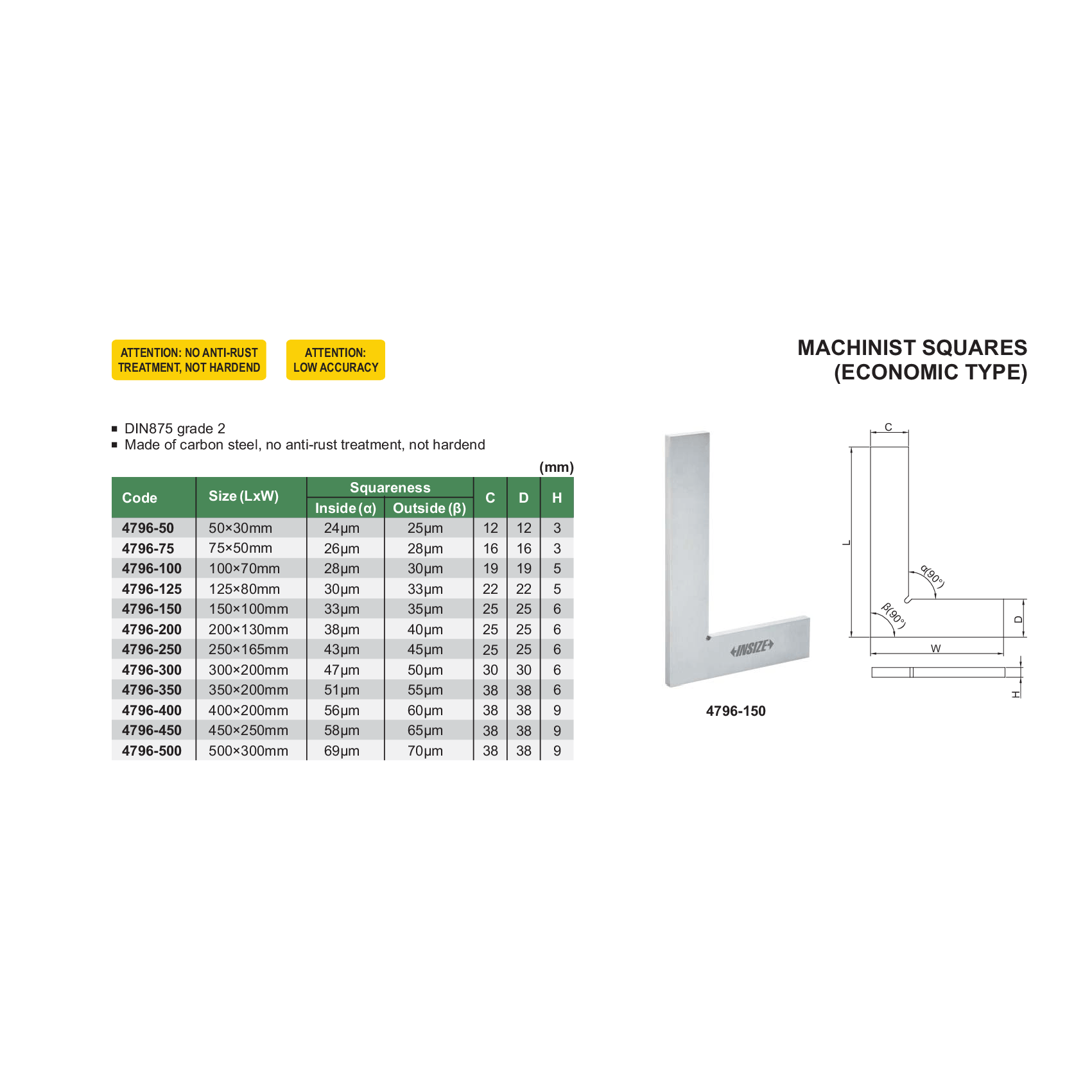

Specifications :

• Part No: 4796-300
• Size (L×W): 300×200 mm
• Squareness (Inside α): 47 μm
• Squareness (Outside β): 50 μm
• C: 30 mm
• D: 30 mm
• H: 6 mm
• Material: Carbon steel (not hardened, no anti-rust treatment)
• Standard: DIN875 Grade 2
• Application: Checking squareness and 90° angle measurement in general machining

The INSIZE 4796-300 Machinist Square provides economical squareness inspection with practical precision for workshop tasks.
